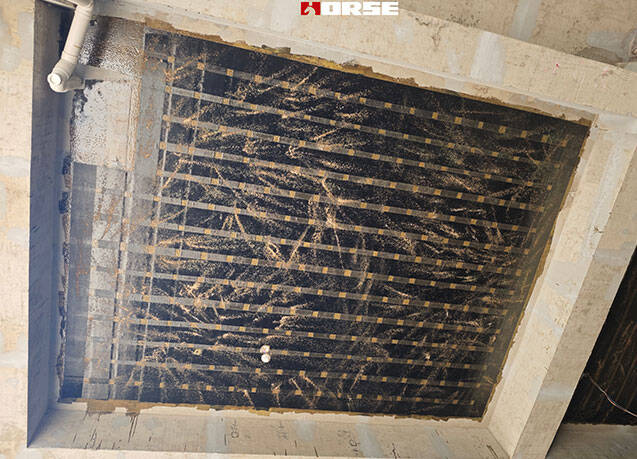

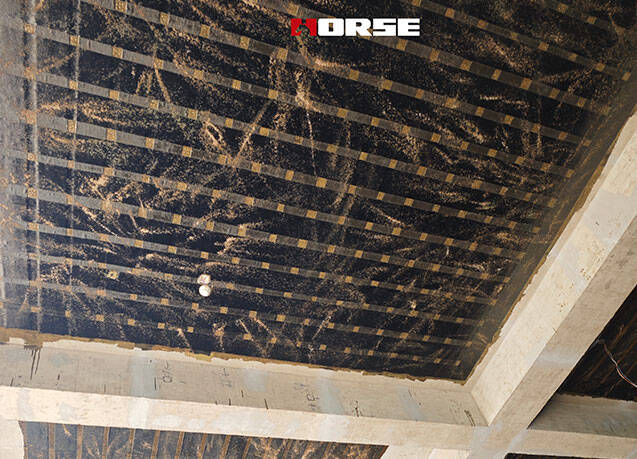

In structural applications such as in the reinforcement of concrete beams, CFRP can increase the flexural strength of the beam by up to several times its original strength. For example, in a simply - supported concrete beam, the addition of CFRP laminates on the tensile side can enhance the load - carrying capacity. The gain in strength can range from 30% to 200% or more, depending on the amount and configuration of the CFRP used.
When used for strengthening columns under axial compressive loads, CFRP can improve the buckling resistance and compressive strength. The increase in compressive strength might be in the range of 10 - 50% depending on the existing strength of the column and the quality of CFRP confinement.
2. Fiber Orientation and Volume Fraction
The orientation of the carbon fibers in the CFRP plays a crucial role. If the fibers are aligned in the direction of the principal stress, the strength gain can be maximized. For example, in a unidirectional CFRP laminate, the strength in the fiber direction can be extremely high. The volume fraction of the fibers also matters. A higher volume fraction of carbon fibers in the polymer matrix generally leads to greater strength gains. Commercially available CFRP materials typically have fiber volume fractions ranging from 40% - 70%. As the fiber volume fraction increases, the tensile strength and modulus of elasticity of the CFRP can increase proportionally.
3. Bonding Quality between CFRP and the Substrate
The effectiveness of CFRP strengthening depends on the quality of the bond between the CFRP and the surface it is applied to. In applications such as strengthening existing structures, if the bonding is poor, the CFRP may not be able to transfer the load effectively, and the expected strength gain will not be realized. With proper surface preparation and high - quality adhesive systems, the CFRP can work in harmony with the substrate to achieve significant strength improvements.
